Understanding AF and GF on Your Circuit Breaker

1. What are AF and GF breakers and why should you care?

Ever stared at your circuit breaker box and wondered what all those letters and numbers mean? Don't worry, you're not alone! Today, we're cracking the code on "AF" and "GF," two important abbreviations you might see on your breakers. Think of them as your electrical system's bodyguards, always on the lookout for trouble.

So, what exactly are AF and GF breakers? Well, AF stands for Arc Fault, and GF stands for Ground Fault. These are special types of circuit breakers designed to protect you from electrical fires and shocks. Regular breakers primarily protect against overloads and short circuits — basically, when too much electricity is flowing through a circuit at once. AF and GF breakers go a step further, detecting more subtle and dangerous problems that could lead to serious harm.

Imagine a frayed wire in your wall sparking and creating a small arc — that's an arc fault. Or picture water getting into an electrical outlet and creating a path for electricity to flow to the ground — that's a ground fault. These situations can be incredibly dangerous, but AF and GF breakers are designed to trip (that is, shut off the circuit) quickly and prevent disaster. They're like tiny, super-sensitive detectives sniffing out potential electrical hazards before they become big problems.

Think of it like this: your standard breaker is like a bouncer at a club, making sure too many people don't try to rush in at once. An AF/GF breaker is like having a security guard with a metal detector, looking for concealed weapons that the bouncer might miss. Both are important for keeping things safe and under control. So, now that we've established what they are, let's dive a little deeper into what they do.

0445 What Does AF Mean? R/igcse

Arc Fault (AF) Breakers

2. How arc fault breakers work to prevent fires

Arc fault circuit interrupters (AFCIs), or AF breakers for short, are specifically designed to detect dangerous arcing conditions in your electrical wiring. Remember that frayed wire we talked about earlier? That's the kind of scenario an AFCI is built to prevent. These arcs can generate a lot of heat and can easily ignite nearby flammable materials, like wood or insulation, leading to a house fire.

Unlike standard breakers that only react to overloads and short circuits, AFCIs use sophisticated technology to analyze the electrical waveform. They're looking for unusual patterns that indicate an arc is present. Think of it like listening to a song; a normal electrical current sounds smooth and consistent, but an arc fault sounds like a scratchy, distorted mess. The AFCI recognizes that distortion and immediately trips the circuit, cutting off the power and preventing a fire from starting.

The National Electrical Code (NEC) has gradually expanded the requirements for AFCI protection over the years. Originally, they were primarily required in bedrooms, but now, many jurisdictions require them in most areas of the home. This is because studies have shown that AFCIs are highly effective in preventing electrical fires. They're a relatively inexpensive safety measure that can make a huge difference in protecting your home and family.

It's important to note that an AFCI isn't a replacement for a standard breaker. You still need both! The standard breaker protects against overloads, and the AFCI protects against arcing. They work together as a team to provide comprehensive electrical safety. If you're not sure whether your home has AFCIs, it's a good idea to check your circuit breaker box. They'll be labeled "AFCI" or "Arc Fault" and usually have a test button.

REPLACING EATON GFCI AFCI CIRCUIT BREAKER, 51 OFF

Ground Fault (GF) Breakers

3. How ground fault breakers protect you from electric shock

Ground fault circuit interrupters (GFCIs), or GF breakers, are designed to protect you from electric shock. A ground fault occurs when electricity takes an unintended path to the ground, often through a person's body. This can happen if you touch a live wire while standing on a wet surface, or if a faulty appliance has a short circuit that energizes its metal casing.

GFCIs work by constantly monitoring the current flowing into and out of a circuit. In a normal circuit, the amount of current flowing in should be equal to the amount of current flowing out. However, if there's a ground fault, some of the current will leak out of the circuit and take a different path to the ground. The GFCI detects this imbalance and immediately trips the circuit, cutting off the power in a fraction of a second — fast enough to prevent serious injury or even death.

You'll typically find GFCI protection in areas where water is present, such as bathrooms, kitchens, laundry rooms, and outdoor outlets. This is because water is an excellent conductor of electricity, which greatly increases the risk of electric shock. The NEC mandates GFCI protection in these areas for good reason. They're a vital safety measure that can save lives.

Think of a GFCI as a super-sensitive electrical balance. It's constantly measuring the flow of electricity, and if even a tiny amount goes missing, it immediately shuts things down. This makes them incredibly effective at preventing electric shock. Like AFCIs, GFCIs also have a test button that you should use regularly to ensure they're working properly. Pressing the test button should cause the GFCI to trip, indicating that it's functioning correctly. If it doesn't trip, you should replace the GFCI immediately.

Home Circuit Breaker Types

Identifying AF and GF Breakers in Your Panel

4. How to spot the difference between standard, AF, and GF breakers.

Okay, so you know what AF and GF breakers do, but how do you actually identify them in your circuit breaker panel? It's simpler than you might think! First, look for labeling. AFCI breakers will typically be labeled "AFCI" or "Arc Fault," while GFCI breakers will be labeled "GFCI" or "Ground Fault." The labeling might be printed directly on the breaker itself or on a sticker next to the breaker in the panel.

Another easy way to identify AF and GF breakers is to look for the test button. Both types of breakers have a small button, usually labeled "Test," that you can press to simulate a fault condition and ensure the breaker is working correctly. Standard breakers don't have this test button. So, if you see a breaker with a test button, it's either an AFCI or a GFCI.

Visually, AFCI and GFCI breakers often look similar to standard breakers, but they might be slightly larger or have a different shape. Some manufacturers also use different colors or markings to differentiate them. However, the labeling and the presence of a test button are the most reliable ways to identify them.

If you're still unsure whether your home has AFCI or GFCI protection, it's always best to consult a qualified electrician. They can inspect your electrical system and identify any potential safety hazards. They can also recommend upgrades to bring your home up to code and ensure the safety of your family. Remember, electrical safety is not something to take lightly. When in doubt, always consult a professional.

Demystifying (AF) And (AT) Ratings In Circuit Breakers Ensuring

Why AF and GF Breakers are Important for Your Home's Safety

5. Protecting your loved ones and property from electrical hazards

At the end of the day, AF and GF breakers are all about safety. They're designed to protect your loved ones and your property from the devastating consequences of electrical fires and shocks. While standard breakers provide a basic level of protection, AF and GF breakers go above and beyond, offering an extra layer of security against more subtle and dangerous electrical hazards.

Consider the peace of mind that comes with knowing your home is protected by these advanced safety devices. You can rest easier knowing that even if a frayed wire starts to arc or water gets into an electrical outlet, your AF and GF breakers will quickly trip and prevent a potentially catastrophic event. They're like having a silent, ever-vigilant guardian watching over your electrical system.

Investing in AF and GF breakers is a wise decision that can save you money in the long run. Electrical fires can cause significant damage to your home, leading to costly repairs and potentially even loss of life. Similarly, electrical shocks can result in serious injuries and medical expenses. By preventing these incidents from happening in the first place, AF and GF breakers can save you a lot of heartache and financial burden.

Plus, many insurance companies offer discounts to homeowners who have AFCI and GFCI protection. This is because they recognize the significant risk reduction that these devices provide. So, not only will you be protecting your family and property, but you might also be saving money on your insurance premiums. It's a win-win situation! So, the next time you're thinking about home safety, remember the importance of AF and GF breakers. They're a small investment that can make a huge difference.

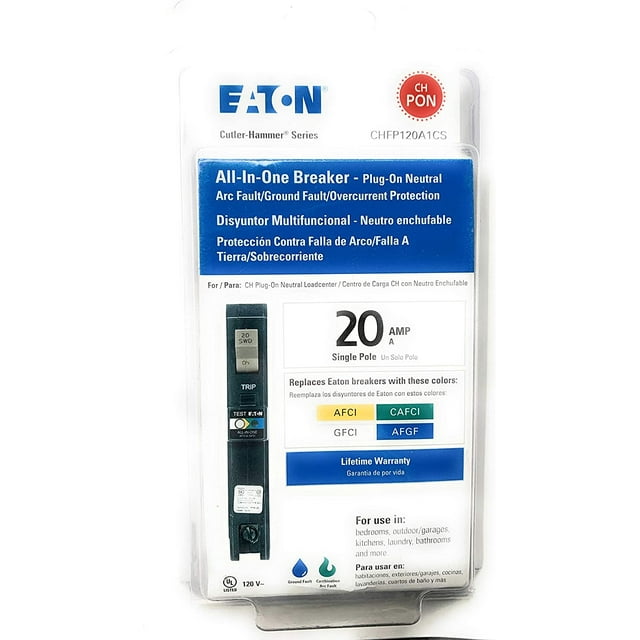

Eaton CH 20 Amp All In One AF/GF PlugOnNeutral BreakerNew Read

Frequently Asked Questions (FAQs)

6. Your burning questions about AF and GF breakers answered.

Let's tackle some of the common questions surrounding these essential safety devices.

Q: How often should I test my AFCI and GFCI breakers?

A: You should test your AFCI and GFCI breakers at least once a month. Simply press the "Test" button on the breaker. If it trips (switches off), that means it's working correctly. If it doesn't trip, you need to replace the breaker immediately.

Q: My AFCI/GFCI breaker keeps tripping. What should I do?

A: If your AFCI or GFCI breaker is tripping frequently, it indicates that there's a fault in the circuit it's protecting. Don't just keep resetting it! Repeatedly resetting a tripping breaker can be dangerous. The best course of action is to call a qualified electrician to diagnose and fix the problem. It could be a faulty appliance, damaged wiring, or some other issue that needs professional attention.

Q: Can I install AFCI and GFCI breakers myself?

A: While it might seem tempting to save money by installing AFCI and GFCI breakers yourself, it's generally not recommended unless you have extensive electrical experience. Working with electricity can be dangerous, and improper installation can create serious safety hazards. It's always best to hire a qualified electrician to ensure the job is done correctly and safely. They can also inspect your entire electrical system for any other potential problems.
